Manual Screen:
MANUAL BAR SCREEN is used for manual cleaning and is ideal for Capture all sizes of wastes at waste water treatment plants.
It consists of a stainless steel frame fixed to the wall in the channel with an inclination angle (usually 75°), they typically consist of a series of vertical steel bars spaced between 1 and 3 inches apart.
Wastewater passes through filtration area (bars) and screenings are captured through a rake, used manually, and moves them to the discharge chute.
Manual Bar Screen Features
- Capture all sizes of wastes
- Low Maintenance
- Easy installation
- Spares easily available
- a high life time
Basket Screen:
The basket screen is excellent for installation in waste water and manholes.

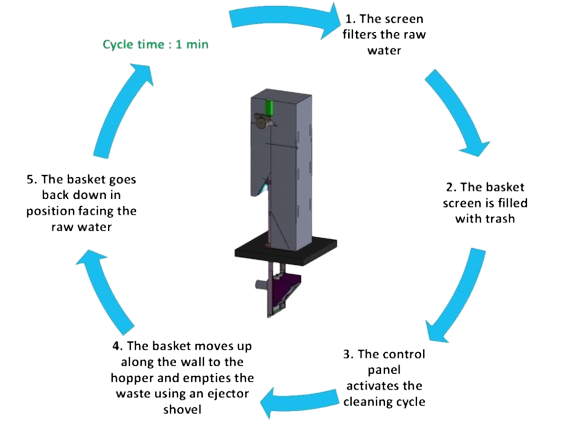

It is based on the design of coarse bar screens. The basket screen is raised and lowered in the shaft via an electric hoist and guided by rails.
The rails are curved in the upper area which facilitates emptying of the basket over the container. Final emptying is carried out by hand with a rake.
The screen basket is constructed of stainless steel sections with a gap of 10 – 40 mm.
BASKET Screen Features:
- For Vertical Installation in Pumping Station ,
- Protect the Pumps
- Capture all sizes of wastes, wipes, wood, rocks, bottles.
- Remove Waste With Only One Cycle.
- No Depth Limit .
- Operated With Handwheel Or Electric Wheel .
Mechanical Screens:
Mechanical Screens consist of a robust steel frame and a bar filter,
Varying according to the screening efficiency required.
Screens are used for coarse screening in waste water plants.
Mechanical Screens Features:
- No Maintenance
- No Clogging of Screen.
- Ease of Installation.
- Simple Operation
